Pure Storage Cloud Dedicated on Azure: An intro to Performance
Introduction
With Pure Storage Cloud Dedicated on Microsoft Azure, performance is largely governed by three factors that need to be taken into consideration: front-end controller networking, controller back‑end connection to managed disks, and the Purity data path. This post explains how Azure building blocks and these factors influence overal performance.
Disclaimer: This post requires basic understanding of PSC Dedicated architecture. Real-life Performance varies based on configuration and workload; examples here are illustrative.
Architecture: the building blocks that shape performance

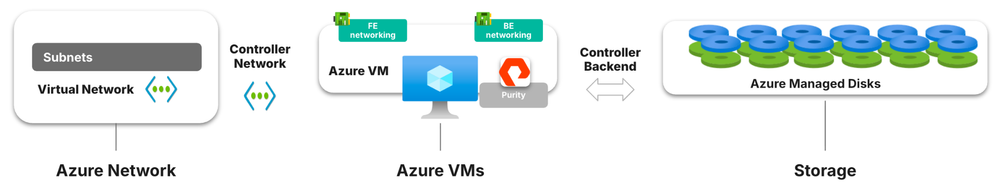

Cloud performance often comes from how compute, storage, and networking are assembled. PSC Dedicated deploys two Azure VMs as storage controllers running the Purity operating environment and uses Azure Managed Disks as persistent media. Initiator VMs connect over the Azure Virtual Network using in‑guest iSCSI or NVMe/TCP. Features like inline data reduction, write coalescing through NVRAM, and an I/O rate limiter help keep the array stable and with predictable performance under saturation.
Front-end performance: networking caps

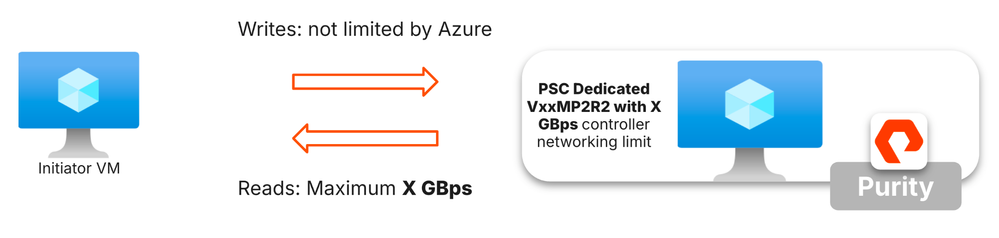

Azure limits the outbound (egress) bandwidth of Virtual Machines. Each Azure VM has a certain network egress cap assigned and cannot send out more data than what the limit allows. As PSC Dedicated controllers run on Azure VMs, this translates into the following:
- Network traffic going INTO the PSC Dedicated array - writes - not throttled by Azure outbound bandwidth limits
- Network traffic going OUT of the PSC Dedicated array - reads - limited

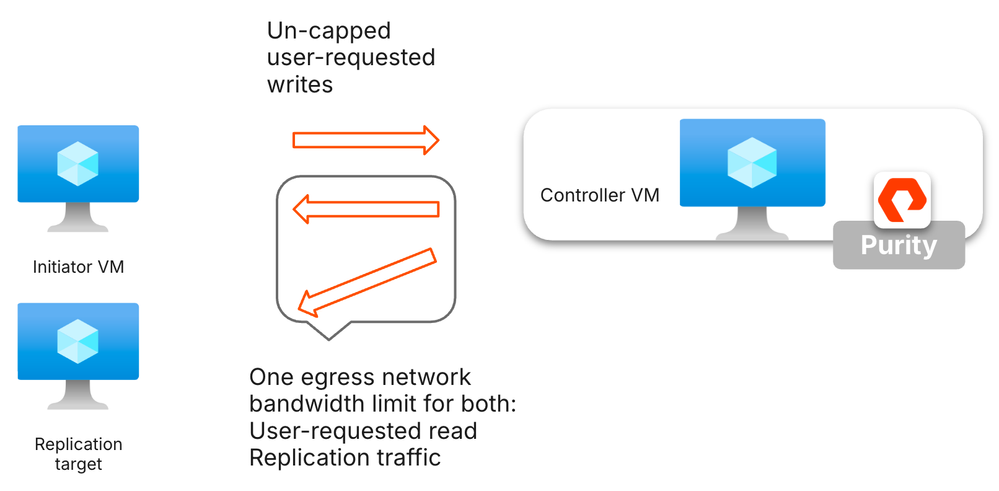

User-requested reads (e.g. from an application) as well as any replication traffic leaving the controller share the same egress budget. Because of that, planning workloads with replication should be done carefully to avoid competing with client reads.
Back-end performance: VM caps, NVMe, and the write path
The Controller VM caps

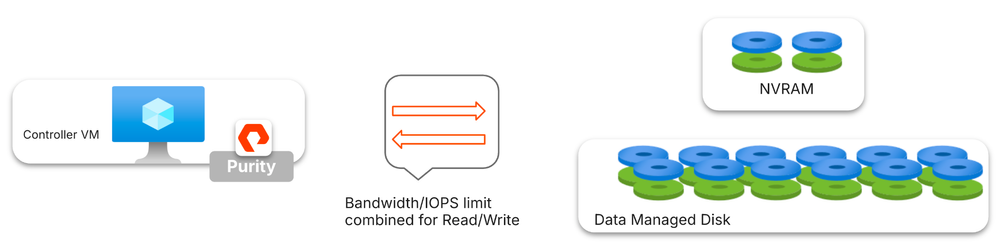

Similarly to frontend network read throughput, Azure enforces per‑VM limits on total backend IOPS and combined read/write throughput.
The overall IOPS/throughput of a VM is therefore limited by the lower of: the controller VM's IOPS/throughput cap and the combined IOPS/throughput of all attached managed disks.
To avoid unnecessary spend due to overprovisioning, managed disks of PSC Dedicated arrays are configured as to saturate the controller backend caps just right.
NVMe backend raises the ceiling
Recent PSC Dedicated releases adopt an NVMe backend on supported Azure Premium SSD v2 based SKUs, increasing the controller VM’s backend IOPS and bandwidth ceilings. The disk layout and economics remain the same while the array gains backend headroom.
The write path

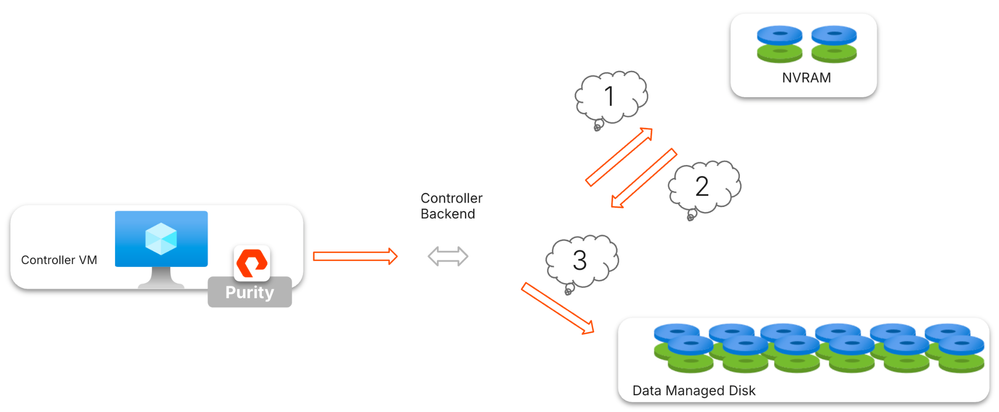

Purity secures initiator writes to NVRAM (for fast acknowledgment) and later destages to data managed disks. For each logical write, the backend cap is therefore tapped multiple times:
- a write to NVRAM
- a read from NVRAM during flush
- and a write to the data managed disks
Under mixed read/write non-reducible workloads this can exhaust the combined read/write backend bandwidth and IOPS of the controller VM. Raised caps of the NVMe backend help here.
Workload characteristics: iSCSI sessions and data reducibility
Block size and session count
Increasing iSCSI session count between Initiator VMs and the array does not guarantee better performance; with large blocks, too many sessions can increase latency without improving throughput, especially when multiple initiators converge on the same controller. Establish at least one session per controller for resiliency, then tune based on measured throughput and latency.
Data reduction helps extend backend headroom
When data is reducible, PSC Dedicated writes fewer physical bytes to backend managed disks. That directly reduces backend write MBps for the same logical workload, delaying the point where Azure’s VM backend caps are reached. The effect is most pronounced for write‑heavy and mixed workloads. Conversely, non‑reducible data translates almost 1:1 to backend traffic, hitting limits sooner and raising latency at high load.
Conclusion
Predictable performance in the cloud is about aligning architecture and operations with the platform’s limits. For PSC Dedicated on Azure, that means selecting the right controller and initiator VM SKUs, co‑locating resources to minimise network distance, enabling accelerated networking, and tuning workloads (block size, sessions, protocol) to the caps that actually matter. Inline data reduction and NVMe backend extend headroom meaningfully (particularly for mixed workloads) while Purity’s design keeps the experience consistent.
Hopefully, this post was able to shed light on at least some of the performance factors of PSC Dedicated on Azure.
